Adventure Rack with LEDs

$1,375.00

Designed to suit commercial vehicles of all types with the following key features:

Bikes on rack streamline with top of vehicle to reduce vehicle drag
Large ground clearance without whilst maintaining an easy to lift bike height
Maximum access to rear of vehicle when bikes are not on

Features

Designed to take E-Bikes
Magnetic sequential LEDs
Magnetic number plate holder with number plate LED
High UV resistant stretch loops
Switchable crank holder position to change bike orientation and or lateral position
Soft inner crank holder liner
Stretch loop holders designed to not interfere with bike loading
10 year structural guarantee

Tech Specs

Vehicle Connection: 50mm x 50mm hitch with three different pin positions
Number of bikes: 2 (4 with extension)
Payload: 60kg – 30kg per bike
Rack weight : 21kg
Max Tyre Width: 2.8 inches
LED Connection: Standard 7 pin flat trailer plug
Material construction: High grade steel
Protection: Zinc undercoat & powder coat on top
Fasteners: Highest Strength Grade (12.9) zinc plated cap head

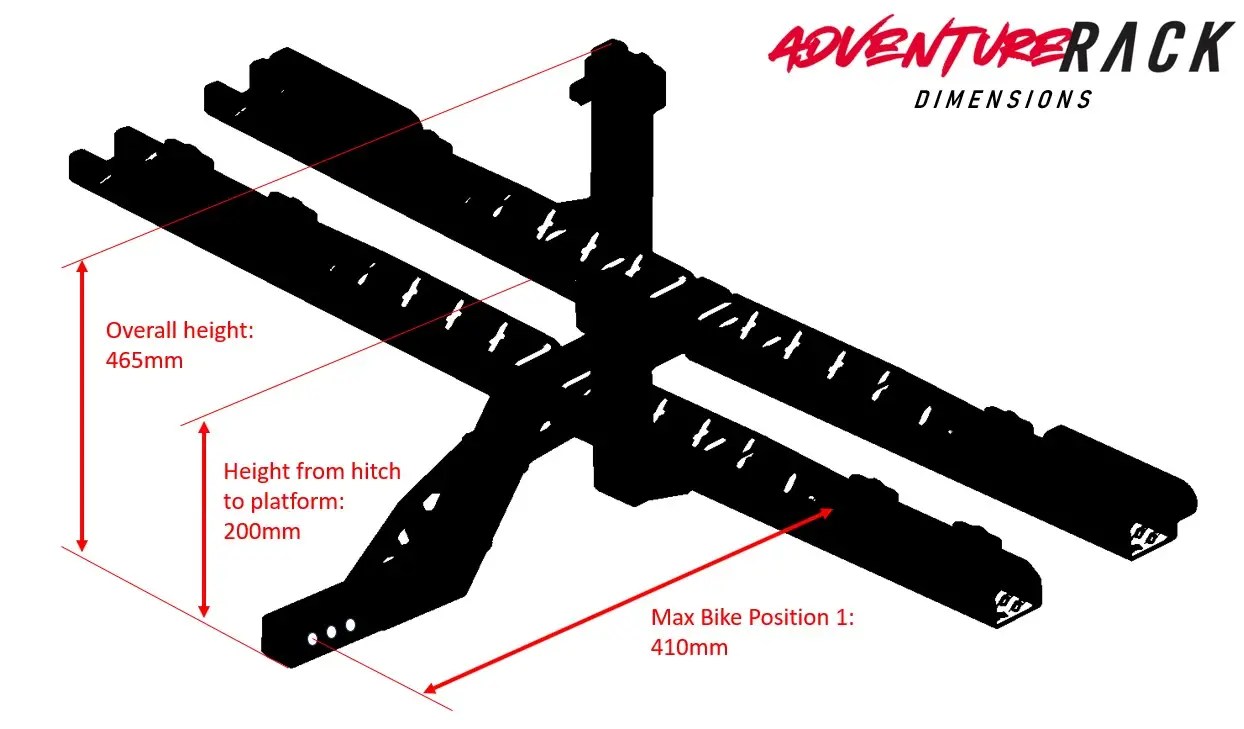

Overall Height: 465mm
Max Length: 730mm (from hitch pin)
Width: 1500mm
Max Bike Position 1: 410mm
Height from hitch to platform: 200mm
Minimum bike bottom bracket height is 280mm (If lower, wheel spacer accessory must be used)
Safety Locking Kit must be used when using bikes that have a contact width with the crank holder of 30mm or less to retain the bike to the rack
