Touring Rack with LEDs

$1,287.00$1,305.00

Specifically designed for vehicles with large rear clearance required. Suits:

  • Extended trays
  • Canopies with spare wheels
  • Large offset hitch relative to rear of vehicle
  • Vehicles requiring high rear departure angles

We offer 2 variants of this rack and recommend the following fitment:

Touring: The touring rack suits vehicles with a canopy and a undercut hitch and a spare tyre.

Touring Shorty: Vehicles with a rear mounted spare tyre: 76/78, Patrol, Prado, Pajero, Ineos, 100/105 etc

  • Magnetic sequential LEDs
  • High UV resistant stretch loops
  • Switchable crank holder position to change bike orientation and or lateral position
  • Soft inner crank holder liner
  • Stretch loop holders designed to not interfere with bike loading
  • 10 year structural guarantee
  • Vehicle Connection: 50mm x 50mm hitch with three different pin positions
  • Number of Bikes: 2
  • Payload: 60kg – 30kg per bike
  • Rack Weight: 23kg
  • Max Tyre Width: 2.8 inches
  • LED Connection: Standard 7 pin flat trailer plug
  • Material Construction: High Grade Steel
  • Protection: Zinc Undercoat & Powdercoat on Top
  • Fasteners: Highest Grade (12.9) Zinc-Plated Cap Head

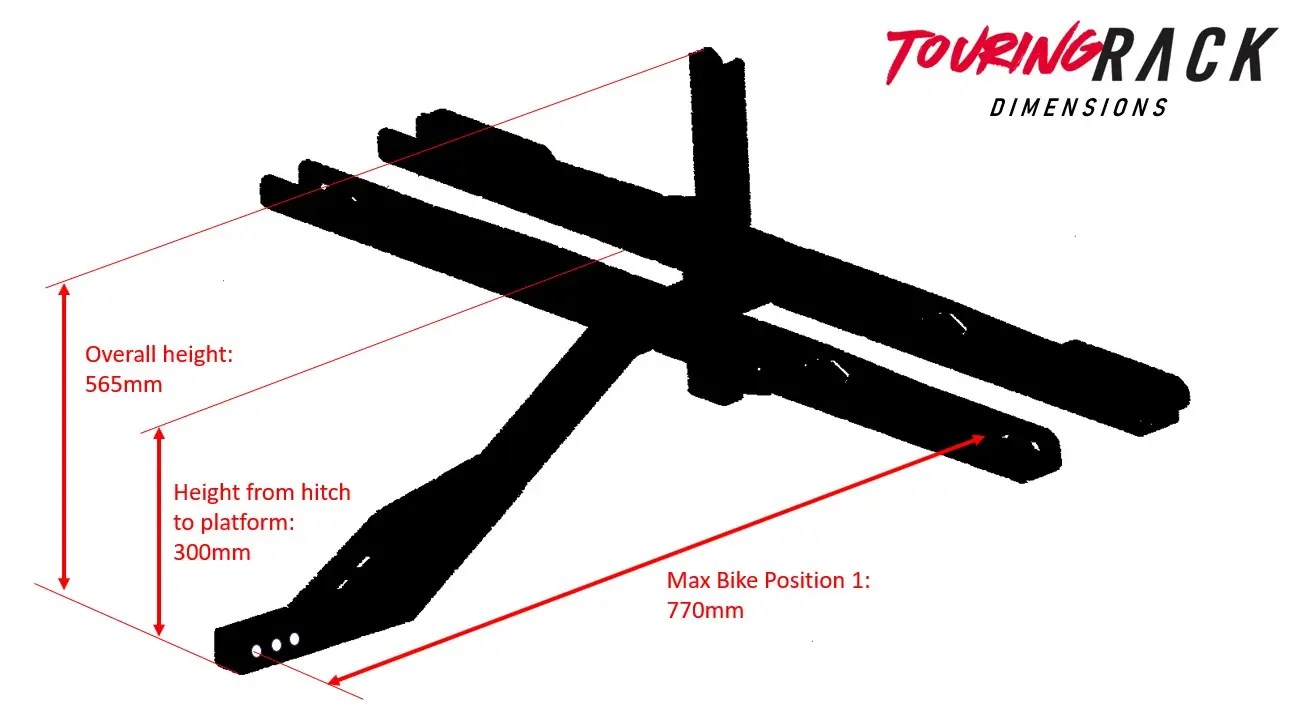

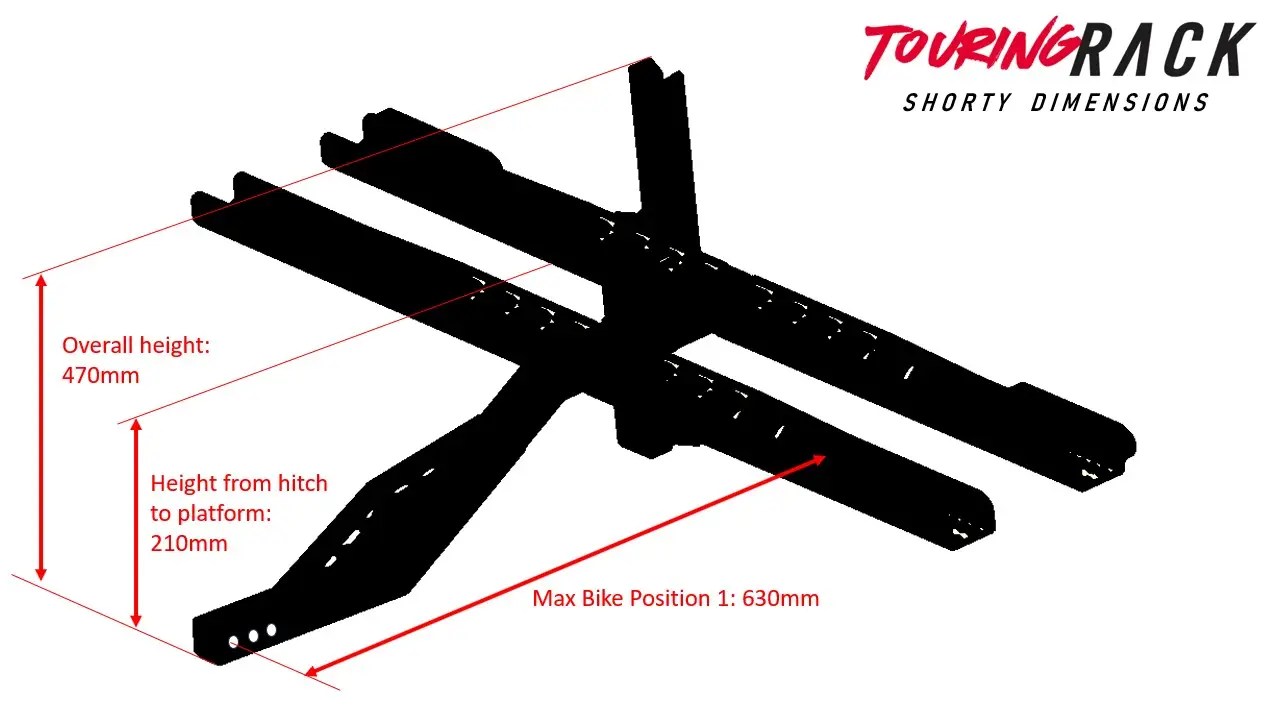

  • Overall Height: 565mm (Original) / 470mm (Shorty)
  • Max Length: 1090mm (from hitch pin)
  • Width: 1500mm
  • Max Bike Position 1: 770mm (Original) / 630mm (Shorty)
  • Height from hitch to platform: 300mm (Orginal) / 210mm (Shorty)
  • Safety Locking Kit must be used when using bikes that have a contact width with the crank holder of 30mm or less to retain the bike to the rack
  • Minimum bike bottom bracket height is 280mm (If lower, wheel spacer accessory must be used)
Type the name of your car colour code - we'll match the rack to suit.
This helps us make sure we're engineering the best racks we can. Note: Currently the Ford Ranger & Everest PX2, PX3 and Next Gen models need an extra module to read the LEDs. We understand this is a common issue with these vehicles. We have a module to ensure the LEDs function correctly on these vehicles & for a limited time we will throw this in for free!
